AD9444

14-Bit 80MSPS A/D Converter

AD9444 Features

* 80 MSPS guaranteed sampling rate 100 dB two-tone SFDR with 69.3 MHz and 70.3 MHz 73.1 dB SNR with 70 MHz input 97 dBc SFDR with 70 MHz input Excellent linearity DNL = ±0.4 LSB typical INL = ±0.6 LSB typical 1.2 W power dissipation 3.3 V and 5 V supply operation 2.0 V p-p differential full-scale inpu

AD9444 General Description

The AD9444 is a 14-bit monolithic, sampling analog-to-digital converter (ADC) with an on-chip, track-and-hold circuit and is optimized for power, small size, and ease of use. The product operates at up to an 80 MSPS conversion rate and is optimized for multicarrier, multimode receivers, such as thos.

AD9444 Datasheet (1.26 MB)

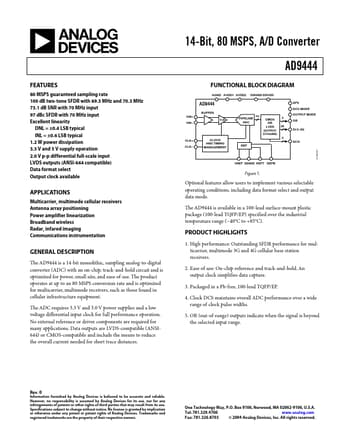

Preview of AD9444 PDF

Datasheet Details

Part number:

AD9444

Manufacturer:

Analog Devices ↗

File Size:

1.26 MB

Description:

14-bit 80msps a/d converter.
