AD9445 Datasheet, Converter, Analog Devices

AD9445 Features

• Converter 125 MSPS guaranteed sampling rate (AD9445BSV-125) 100 dB two-tone SFDR with 30 MHz and 31 MHz 73.5 dB SNR with 70 MHz input 88 dBc SFDR with 225 MHz input Excellent linearity DNL = ±0.2

PDF File Details

Part number:

AD9445

Manufacturer:

Analog Devices ↗

File Size:

277.49kb

Download:

📄 Datasheet

Description:

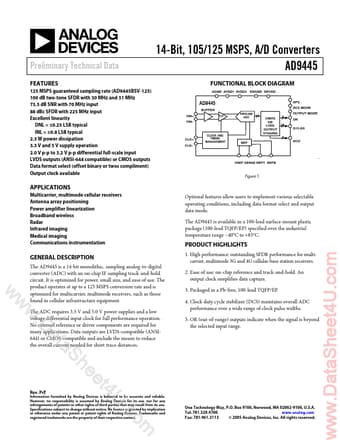

14-bit 105/125 msps a/d converter. The AD9445 is a 14-bit monolithic, sampling analog-to-digital converter (ADC) with an on-chip IF sampling track-and-hold circuit. It

AD9445 Application

• Applications Multicarrier, multimode cellular receivers Antenna array positioning Power amplifier linearization Broadband wireless Radar Infrared im
