AD9554-1, Multiservice Line Card Adaptive Clock Translator

Data Sheet Quad PLL, Quad Input, Multiservice Line Card Adaptive Clock Translator AD9554-1 .

AD9554-1-AnalogDevices.pdf

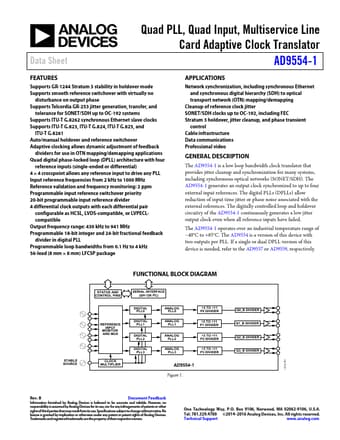

AD9554-1 Datasheet Preview — Preview of AD9554-1 PDF

Datasheet Details

Part number:

AD9554-1

Manufacturer:

Analog Devices ↗

File Size:

1.30 MB

Description:

Multiservice Line Card Adaptive Clock Translator

Features

* Supports GR-1244 Stratum 3 stability in holdover mode Supports smooth reference switchover with virtually no disturbance on output phase Supports Telcordia GR-253 jitter generation, transfer, and tolerance for SONET/SDH up to OC-192 systems Supports ITU-T G.8262 synchronous Ethernet slave clocks Sup

Applications

* Quad digital phase-locked loop (DPLL) architecture with four reference inputs (single-ended or differential) 4 × 4 crosspoint allows any reference input to drive any PLL Input reference frequencies from 2 kHz to 1000 MHz Reference validation and frequency monitoring: 2 ppm Programmable input referen
