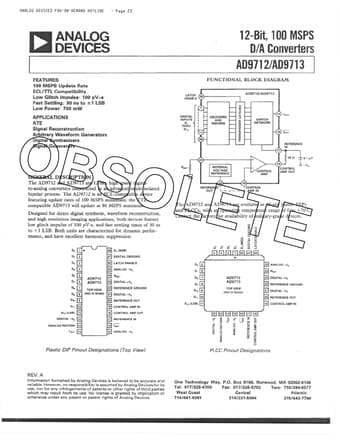

AD9712 Datasheet - Analog Devices

100MSPS D/A CONVERTERS

AD9712 Features

* 100 MSPS Update Rate ECL/TTL Compatibility Low Glitch Impulse: 100 pV-s Fast Settling: 30 ns to %1 LSB Low Power: 700 mW APPUCA TlONS ATE Signal Reconstruction Arbitrary Waveform Generators Digital Synthesizers Signal Generators BLOCK DIAGRAM AD9712/AD9713 OBS rn ;1" CONTROL .!!.I CONTROL m ANALOG

AD9712 General Description

The AD9712 and AD9713 are I2-bit, high speed digitalto-analog converters constructed in an advanced oxide isolated bipolar process. The AD9712 is an ECL-compatible device featUring update rates of 100 MSPS minimum; the TTLcompatible AD9713 will update at 80 MSPS minimum. Designed for direct digital.

AD9712 Datasheet (2.69 MB)
