AD9712B Datasheet - Analog Devices

12-Bit/ 100 MSPS D/A Converters

AD9712B Features

* 100 MSPS Update Rate ECL/TTL Compatibility SFDR @ 1 MHz: 70 dBc Low Glitch Impulse: 28 pV-s Fast Settling: 27 ns Low Power: 725 mW 1/2 LSB DNL (B Grade) 40 MHz Multiplying Bandwidth APPLICATIONS ATE Signal Reconstruction Arbitrary Waveform Generators Digital Synthesizers Signal Generators LATCH 26 E

AD9712B General Description

The AD9712B and AD9713B D/A converters are replacements for the AD9712 and AD9713 units which offer improved ac and dc performance. Like their predecessors, they are 12-bit, high speed digital-to-analog converters fabricated in an advanced oxide isolated bipolar process. The AD9712B is an ECLcompat.

AD9712B Datasheet (329.74 KB)

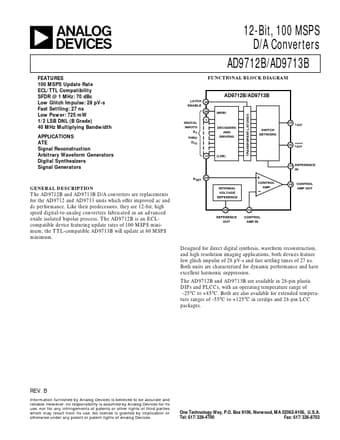

Preview of AD9712B PDF

Datasheet Details

Part number:

AD9712B

Manufacturer:

Analog Devices ↗

File Size:

329.74 KB

Description:

12-bit/ 100 msps d/a converters.
