AD9782

200MSPS / 500MSPS TxDAC

AD9782 Features

* 12-bit resolution, 200 MSPS input data rate Selectable 2×/4×/8× interpolation filters Selectable fDAC/2, fDAC/4, fDAC/8 modulation modes Single or dual-channel signal processing Selectable image rejection Hilbert transform Flexible calibration engine Direct IF transmission features Serial control in

AD9782 Datasheet (1.65 MB)

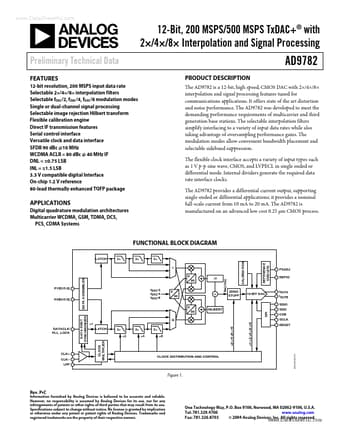

Preview of AD9782 PDF

Datasheet Details

Part number:

AD9782

Manufacturer:

Analog Devices ↗

File Size:

1.65 MB

Description:

200msps / 500msps txdac.
