AD9784 Datasheet, Txdac, Analog Devices

AD9784 Features

  • Txdac 14-bit resolution, 200 MSPS input data rate Selectable 2×/4×/8× interpolation filters Selectable fDAC/2, fDAC/4, fDAC/8 modulation modes Single or dual-channel signal processing Selecta

PDF File Details

Part number:

AD9784

Manufacturer:

Analog Devices ↗

File Size:

1.68MB

Download:

📄 Datasheet

Description:

Txdac. The AD9784 is a 14-bit, high speed, CMOS DAC with 2×/4×/8× interpolation and signal processing features tuned for communications appl

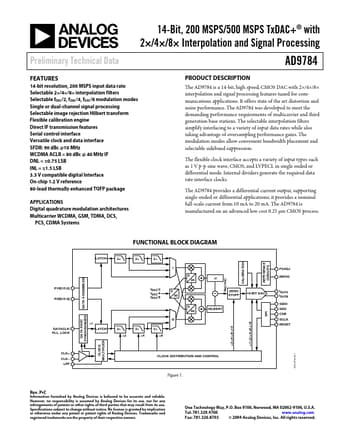

Datasheet Preview: AD9784 📥 Download PDF (1.68MB)
Page 2 of AD9784 Page 3 of AD9784

AD9784 Application

  • Applications Digital quadrature modulation architectures Multicarrier WCDMA, GSM, TDMA, DCS, PCS, CDMA Systems AD9784 PRODUCT DESCRIPTION The AD978
