AD9876, Broadband Modem Mixed-Signal Front End

aA Broadband Modem Mixed-Signal Front End AD9876 .
The AD9876 is a single-s.

AD9876-AnalogDevices.pdf

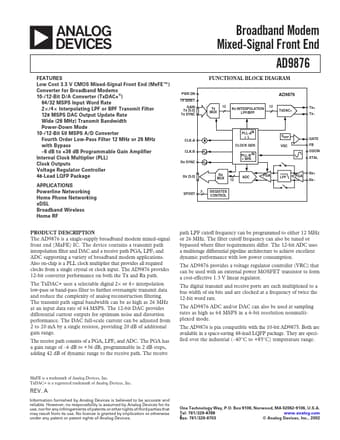

AD9876 Datasheet Preview — Preview of AD9876 PDF

Datasheet Details

Part number:

AD9876

Manufacturer:

Analog Devices ↗

File Size:

433.75 KB

Description:

Broadband Modem Mixed-Signal Front End

Features

* Low Cost 3.3 V CMOS Mixed-Signal Front End (MxFE™) Converter for Broadband Modems 10-/12-Bit D/A Converter (TxDAC+®) 64/32 MSPS Input Word Rate 2؋/4؋ Interpolating LPF or BPF Transmit Filter 128 MSPS DAC Output Update Rate Wide (26 MHz) Transmit Bandwidth Power-Down Mode 10-/12-Bit 50 MSPS A/D Conve

Applications

* Powerline Networking Home Phone Networking xDSL Broadband Wireless Home RF PWR DN Tx QUIET GAIN Tx [5:0] Tx SYNC FUNCTIONAL BLOCK DIAGRAM AD9876 Tx 12 12 Kx INTERPOLATION MUX LPF/BPF TxDAC+ Tx+ Tx
* CLK-A CLK-B Rx SYNC PLL-A ؋L CLOCK GEN PLL-B ؋ M/N VREF VRC GATE FB OSCIN XTAL R
