AD9912, 1-GSPS Direct Digital Synthesizer

Data Sheet AD9912 1 GSPS Direct Digital Synthesizer with 14-Bit DAC .
The AD9912 is a direct digital synthesizer (DDS) that features an integrated 14-bit digital-to-analog converter (DAC).

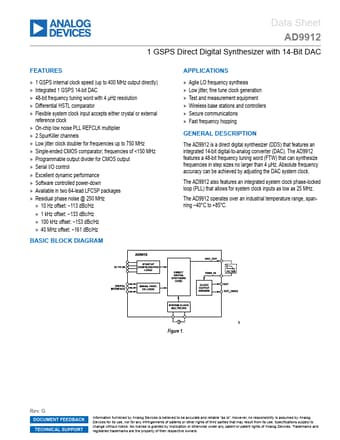

datasheet Preview Page 1 from Datasheet4u.com

AD9912_AnalogDevices.pdf

AD9912 Datasheet Preview — Preview of AD9912 PDF

Datasheet Details

Part number:

AD9912

Manufacturer:

Analog Devices ↗

File Size:

1.62 MB

Description:

1-GSPS Direct Digital Synthesizer

Features

* 1 GSPS internal clock speed (up to 400 MHz output directly)
* Integrated 1 GSPS 14-bit DAC
* 48-bit frequency tuning word with 4 µHz resolution
* Differential HSTL comparator
* Flexible system clock input accepts either crystal or external reference clock
* On-chip low nois

Applications

* Agile LO frequency synthesis
* Low jitter, fine tune clock generation
* Test and measurement equipment
* Wireless base stations and controllers
* Secure communications
