AD9915 Datasheet, Synthesizer, Analog Devices

AD9915 Features

  • Synthesizer
  • 2.5 GSPS internal clock speed
  • Integrated 12-bit DAC
  • Frequency tuning resolution to 135 pHz
  • 16-bit phase tuning resolution
  • 12-bit amplit

PDF File Details

Part number:

AD9915

Manufacturer:

Analog Devices ↗

File Size:

2.22MB

Download:

📄 Datasheet

Description:

2.5 gsps direct digital synthesizer. Specifications 5 DC Specifications 5 AC Specifications 6 Absolute Maximum Ratings9 Thermal Performance9 ESD Caution9 Pin Configurati

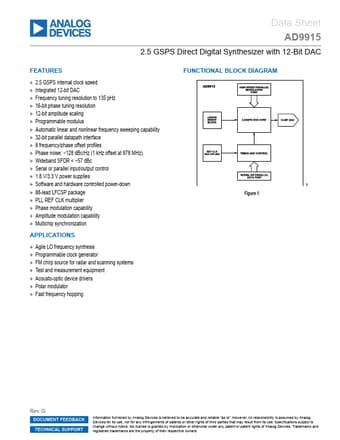

Datasheet Preview: AD9915 📥 Download PDF (2.22MB)
Page 2 of AD9915 Page 3 of AD9915

AD9915 Application

  • Applications
  • Agile LO frequency synthesis
  • Programmable clock generator
  • FM chirp source for radar and scanning systems
