ADA4075-2 Datasheet, Power, Analog Devices

ADA4075-2 Features

  • Power Ultralow noise: 2.8 nV/√Hz at 1 kHz typical Ultralow distortion: 0.0002% typical Low supply current: 1.8 mA per amplifier typical Offset voltage: 1 mV maximum Bandwidth: 6.5 MHz typical

PDF File Details

Part number:

ADA4075-2

Manufacturer:

Analog Devices ↗

File Size:

1.09MB

Download:

📄 Datasheet

Description:

Ultralow noise amplifier at lower power. The ADA4075-2 is a dual, high performance, low noise operational amplifier combining excellent dc and ac characteristics on the Analo

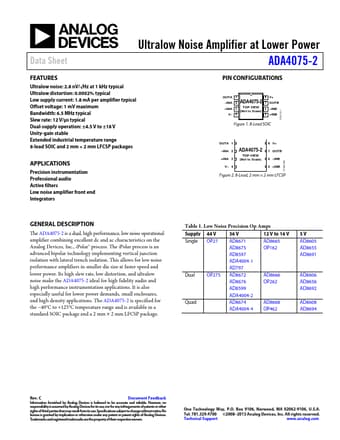

Datasheet Preview: ADA4075-2 📥 Download PDF (1.09MB)
Page 2 of ADA4075-2 Page 3 of ADA4075-2

ADA4075-2 Application

  • Applications Precision instrumentation Professional audio Active filters Low noise amplifier front end Integrators PIN CONFIGURATIONS 07642-001 O
