ADA4355 Datasheet - Analog Devices

ADA4355 Current-to-Bits Receiver

The ADA4355 is a complete, high performance, current input µModule®. For space savings, the ADA4355 includes all the required active and passive components to realize a complete current to bits data acquisition solution, supporting a small form factor, optical modules as well as multichannel systems.

ADA4355 Features

* High performance, current input, data acquisition µModule that includes a TIA, analog filter, ADC driver, and ADC 3 selectable TZ settings: 2 kΩ, 20 kΩ, and 200 kΩ Internal 1.8 V LDO for the ADC All passive components including supply decoupling Small form factor: 12.00 mm × 6.00 mm CSP_BGA Operatio

ADA4355-AnalogDevices.pdf

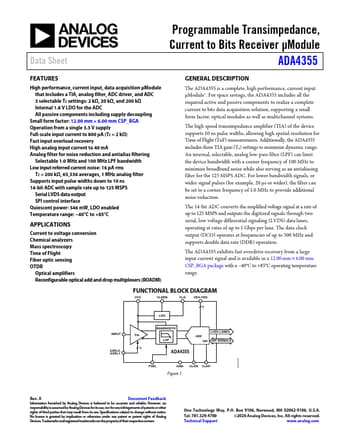

Preview of ADA4355 PDF
ADA4355 Datasheet Preview Page 2 ADA4355 Datasheet Preview Page 3

Datasheet Details

Part number:

ADA4355

Manufacturer:

Analog Devices ↗

File Size:

1.37 MB

Description:

Current-to-bits receiver.
