ADADC71 - High Resolution 16-Bit A/D Converters

The ADADC71 is a high resolution 16-bit hybrid IC analog-todigital converter including reference, clock, and laser-trimmed thin-film components. The package is a compact 32-pin hermetic ceramic DIP. The thin-film scaling resistors allow analog input ranges of ±2.5 V, ±5 V, ±10 V, 0 to +5 V, 0 to +10.

ADADC71 Features

* 16-bit converter with reference and clock ±0.003% maximum nonlinearity No missing codes to 14 bits Fast conversion: 35 μs (14 bit) Short cycle capability Parallel logic outputs Low power: 645 mW typical Industry standard pinout APPLICATIONS Medical and analytic instrumentation Precision measurement

ADADC71_AnalogDevices.pdf

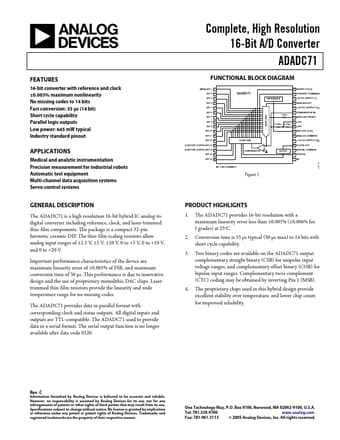

ADADC71 Datasheet Preview — Preview of ADADC71 PDF

Datasheet Details

Part number:

ADADC71

Manufacturer:

Analog Devices ↗

File Size:

186.25 KB

Description:

High resolution 16-bit a/d converters.
