ADAQ4224

DAQ signal chain solution

Analog Devices

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Analog Devices Inc	EVAL-ADAQ4224-FMCZ	EVAL BOARD	DigiKey	0	1 units	$245.62	🛒 Buy Now

Download Datasheet (3.40 MB)

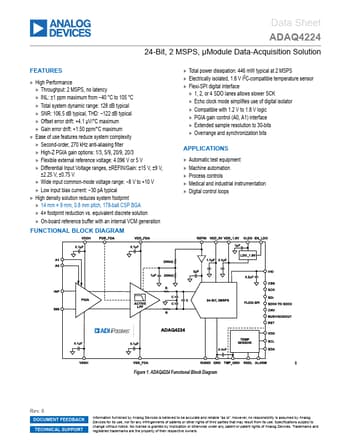

ADAQ4224 Datasheet Preview — Preview of ADAQ4224 PDF Datasheet

Datasheet Details

Part number:

ADAQ4224

Manufacturer:

Analog Devices ↗

File Size:

3.40 MB

Description:

Daq signal chain solution.
Data Sheet ADAQ4224 24-Bit, 2 MSPS, μModule Data-Acquisition Solution FEATURES * High Performance *.
Specifications 4 Timing Specifications 8 Absolute Maximum Ratings13 Thermal Resistance 13 Electrost.

✔ ADAQ4224 Features

High Performance
Throughput: 2 MSPS, no latency
INL: ±1 ppm maximum from
40 °C to 105 °C
Total system dynamic range: 128 dB typical
SNR: 106.5 dB typical, THD:

✔ ADAQ4224 Application

Automatic test equipment
Machine automation
Process controls
Medical and industrial instrumentation
