ADAU7002

Stereo PDM-to-I2S or TDM Conversion

Analog Devices

ADAU7002 Features

* 64× decimation of a stereo pulse density modulation (PDM) bit stream to pulse code modulation (PCM) audio data Slave I2S or time division multiplexed (TDM) output interface Configurable TDM slots I/O supply operation: 1.62 V to 3.6 V 64× output sample rate PDM clock 64×/128×/192×/256×/384×/512× outp

ADAU7002 General Description

The ADAU7002 converts a stereo PDM bit stream into a PCM output. The source for the PDM data can be two microphones or other PDM sources. The PCM audio data is output on a serial audio interface port in either I2S or TDM format. The ADAU7002 is specified over the commercial temperature range (

ADAU7002 Datasheet (347.21 KB)

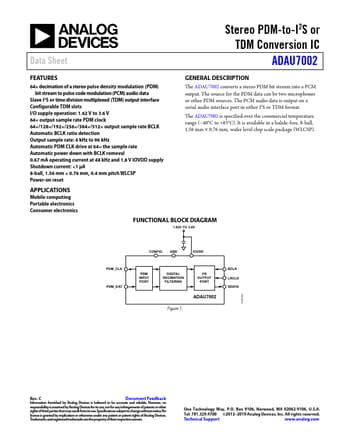

ADAU7002 Datasheet Preview — Preview of ADAU7002 PDF

Datasheet Details

Part number:

ADAU7002

Manufacturer:

Analog Devices ↗

File Size:

347.21 KB

Description:

Stereo pdm-to-i2s or tdm conversion.
