ADG407 - LC2MOS 8-/16-Channel High Performance Analog Multiplexers

Datasheet Summary

Description

LC2MOS 8-/16-Channel High Performance Analog Multiplexers ADG406/ADG407/ADG426 FUNCTIONAL BLOCK DIAGRAMS ADG406 S1 S1A DA S8A D S1B S16 1 OF 16 DECODER A0 A1 A2 A3 EN DB S8B 1 OF 8 DECODER A0 A1 A2 EN ADG407 ADG426 S1 D S16 WR DECODER/ LATCHES A0 A1 A2 A3 EN RS PRODUCT HIGHLIGHTS The ADG406, A

Features

  • 44 V Supply Maximum Ratings VSS to VDD Analog Signal Range Low On Resistance (80 Ω max) Low Power Fast Switching tON < 160 ns t OFF < 150 ns Break Before Make Switching Action Plug-In Upgrade for DG506A/ADG506A, DG507A/ADG507A, DG526/ADG526A ADG406/ADG407 are Plug-In Replacements for DG406/DG407.

📥 Download Datasheet

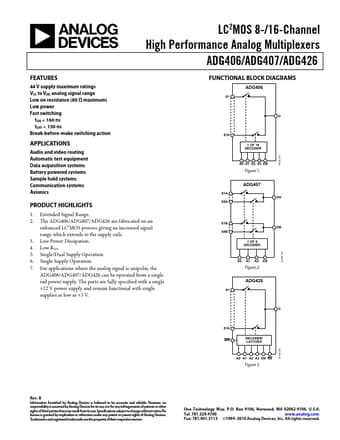

Datasheet preview – ADG407
