ADG409 Datasheet, Multiplexers, Analog Devices

ADG409 Features

  • Multiplexers 44 V supply maximum ratings VSS to VDD analog signal range Low on resistance (100 Ω maximum) Low power (ISUPPLY < 75 μA) Fast switching Break-before-make switching action Plug-in replac

PDF File Details

Part number:

ADG409

Manufacturer:

Analog Devices ↗

File Size:

292.51kb

Download:

📄 Datasheet

Description:

High performance analog multiplexers. The ADG408/ADG409 are monolithic CMOS analog multiplexers comprising eight single channels and four differential channels, respective

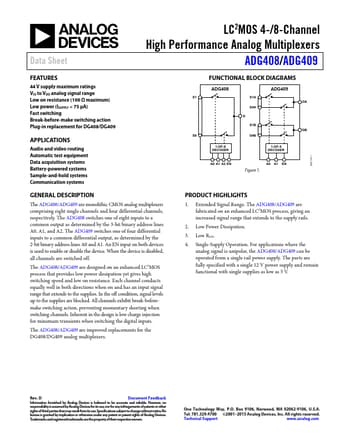

Datasheet Preview: ADG409 📥 Download PDF (292.51kb)
Page 2 of ADG409 Page 3 of ADG409

ADG409 Application

  • Applications Audio and video routing Automatic test equipment Data acquisition systems Battery-powered systems Sample-and-hold systems Communication
