ADG412 Datasheet, Switches, Analog Devices

ADG412 Features

• Switches 44 V Supply Maximum Ratings ؎ 15 V Analog Signal Range Low On Resistance (<35 ⍀ ) Ultralow Power Dissipation (35 ␮ W) Fast Switching Times tON <175 ns tOFF <145 ns TTL/CMOS Compatible P

PDF File Details

Part number:

ADG412

Manufacturer:

Analog Devices ↗

File Size:

188.42kb

Download:

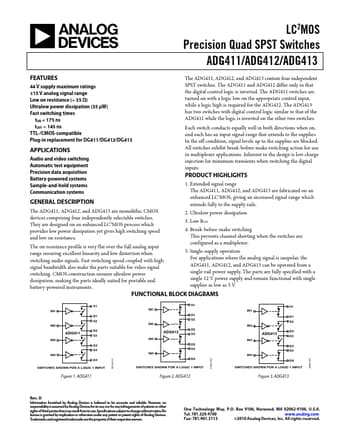

📄 Datasheet

Description:

Lc2mos precision quad spst switches. The ADG411, ADG412 and ADG413 are monolithic CMOS devices comprising four independently selectable switches. They are designed on an

ADG412 Application

• Applications Audio and Video Switching Automatic Test Equipment Precision Data Acquisition Battery Powered Systems Sample Hold Systems Communication
