ADG419 Datasheet, Switch, Analog Devices

ADG419 Features

  • Switch 44 V supply maximum ratings VSS to VDD analog signal range Low on resistance: <35 Ω Ultralow power dissipation: < 35 μW Fast transition time: 160 ns maximum Break-before-make switching

PDF File Details

Part number:

ADG419

Manufacturer:

Analog Devices ↗

File Size:

307.84kb

Download:

📄 Datasheet

Description:

Lc2mos precision mini-dip analog switch. The ADG419 is a monolithic CMOS SPDT switch. This switch is designed on an enhanced LC2MOS process that provides low power dissipatio

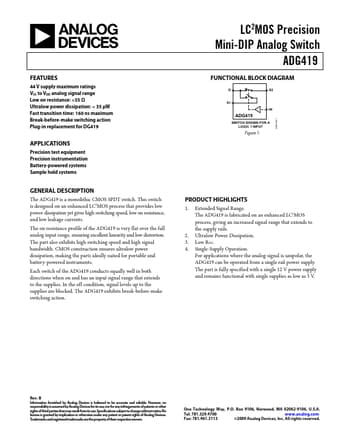

Datasheet Preview: ADG419 📥 Download PDF (307.84kb)
Page 2 of ADG419 Page 3 of ADG419

ADG419 Application

  • Applications Precision test equipment Precision instrumentation Battery-powered systems Sample hold systems GENERAL DESCRIPTION The ADG419 is a mono
