ADG419-EP

LC2MOS Precision Analog Switch

ADG419-EP Features

* 44 V supply maximum ratings VSS to VDD analog signal range Low on resistance:

ADG419-EP General Description

The ADG419-EP is a monolithic CMOS SPDT switch. This switch is fabricated on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage current. The on resistance profile of the ADG419-EP is very flat over the full analog input r.

ADG419-EP Datasheet (175.15 KB)

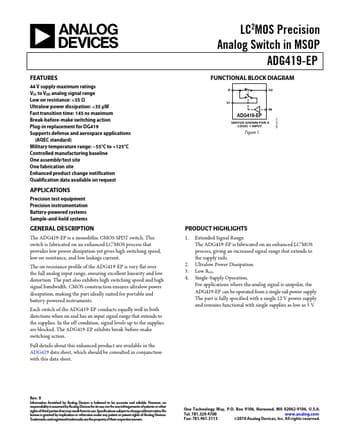

Preview of ADG419-EP PDF

Datasheet Details

Part number:

ADG419-EP

Manufacturer:

Analog Devices ↗

File Size:

175.15 KB

Description:

Lc2mos precision analog switch.
