ADG417 - LC2MOS Precision Mini-DIP Analog Switch

Datasheet Summary

Description

The ADG417 is a monolithic CMOS SPST switch.

This switch is designed on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed, low on resistance and low leakage currents.

Features

44 V Supply Maximum Ratings V SS to VDD Analog Signal Range Low On Resistance (.

Analog Devices

📥 Download Datasheet

Datasheet Details

Part number	ADG417
Manufacturer	Analog Devices
File Size	91.83 KB
Description	LC2MOS Precision Mini-DIP Analog Switch
Datasheet	ADG417 Datasheet
Additional preview pages of the ADG417 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices

ADG411 - LC2MOS Precision Quad SPST Switches
ADG412 - LC2MOS Precision Quad SPST Switches
ADG413 - LC2MOS Precision Quad SPST Switches
ADG419 - LC2MOS Precision Mini-DIP Analog Switch
ADG419-EP - LC2MOS Precision Analog Switch
ADG406 - LC2MOS 8-/16-Channel High Performance Analog Multiplexers
ADG407 - LC2MOS 8-/16-Channel High Performance Analog Multiplexers
ADG408 - High Performance Analog Multiplexers

Full PDF Text Transcription

Click to expand full text

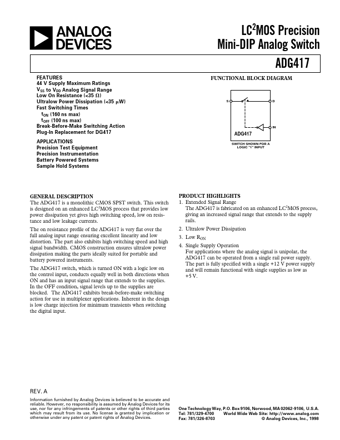

a FEATURES 44 V Supply Maximum Ratings V SS to VDD Analog Signal Range Low On Resistance (<35 ⍀ ) Ultralow Power Dissipation (<35 ␮ W) Fast Switching Times tON (160 ns max) tOFF (100 ns max) Break-Before-Make Switching Action Plug-In Replacement for DG417 APPLICATIONS Precision Test Equipment Precision Instrumentation Battery Powered Systems Sample Hold Systems LC2MOS Precision Mini-DIP Analog Switch ADG417 FUNCTIONAL BLOCK DIAGRAM S D IN ADG417 SWITCH SHOWN FOR A LOGIC "1" INPUT GENERAL DESCRIPTION PRODUCT HIGHLIGHTS The ADG417 is a monolithic CMOS SPST switch. This switch is designed on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed, low on resistance and low leakage currents.
