ADG411 Features

  • Switches 44 V Supply Maximum Ratings ؎ 15 V Analog Signal Range Low On Resistance (<35 ⍀ ) Ultralow Power Dissipation (35 ␮ W) Fast Switching Times tON <175 ns tOFF <145 ns TTL/CMOS Compatible P

PDF File Details

Part number:

ADG411

Manufacturer:

Analog Devices ↗

File Size:

197.94kb

Download:

📄 Datasheet

Description:

Lc2mos precision quad spst switches. The ADG411, ADG412 and ADG413 are monolithic CMOS devices comprising four independently selectable switches. They are designed on an

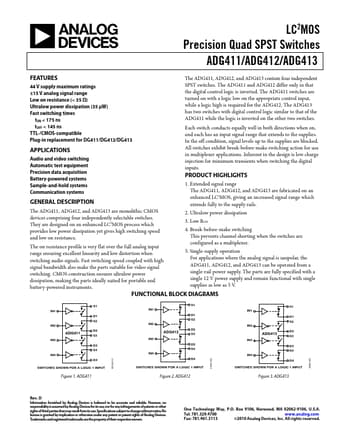

Datasheet Preview: ADG411 📥 Download PDF (197.94kb)
Page 2 of ADG411 Page 3 of ADG411

ADG411 Application

  • Applications Audio and Video Switching Automatic Test Equipment Precision Data Acquisition Battery Powered Systems Sample Hold Systems Communication
