ADG721 CMOS Low Voltage 4 ohm Dual SPST Switches

The ADG721, ADG722, and ADG723 are monolithic CMOS SPST switches. These switches are designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents. The devices are packaged in both a tiny 3 mm × 2 mm LFCSP an.

ADG721 Features

* 1.8 V to 5.5 V single supply 4 Ω (max) on resistance Low on resistance flatness

* 3 dB bandwidth >200 MHz Tiny package options 8-lead MSOP 3 mm × 2 mm LFCSP (A grade) Fast switching times tON, 20 ns tOFF, 10 ns Low power consumption (

ADG721_AnalogDevices.pdf

Preview of ADG721 PDF

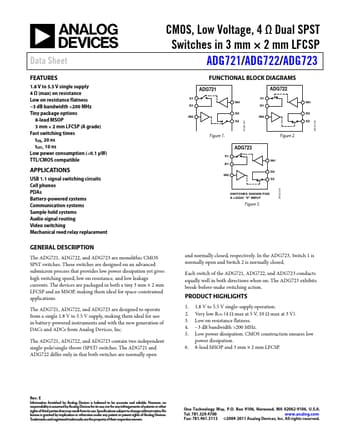

ADG721 Datasheet Preview Page 2 ADG721 Datasheet Preview Page 3

Datasheet Details

Part number:

ADG721

Manufacturer:

Analog Devices ↗

File Size:

253.46 KB

Description:

Cmos low voltage 4 ohm dual spst switches.
