ADG722 Datasheet, Switches, Analog Devices

ADG722 Features

  • Switches 1.8 V to 5.5 V single supply 4 Ω (max) on resistance Low on resistance flatness
  • 3 dB bandwidth >200 MHz Tiny package options 8-lead MSOP 3 mm × 2 mm LFCSP (A grade) Fast switch

PDF File Details

Part number:

ADG722

Manufacturer:

Analog Devices ↗

File Size:

253.46kb

Download:

📄 Datasheet

Description:

Cmos low voltage 4 ohm dual spst switches. The ADG721, ADG722, and ADG723 are monolithic CMOS SPST switches. These switches are designed on an advanced submicron process that p

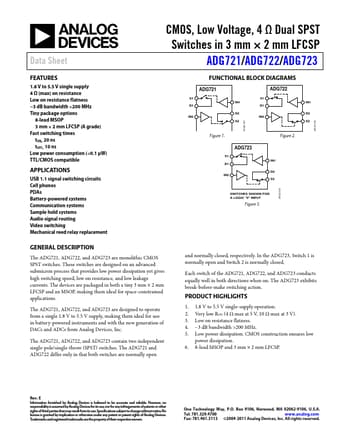

Datasheet Preview: ADG722 📥 Download PDF (253.46kb)
Page 2 of ADG722 Page 3 of ADG722

ADG722 Application

  • Applications USB 1.1 signal switching circuits Cell phones PDAs Battery-powered systems Communication systems Sample hold systems Audio signal routi
