ADG723 - CMOS Low Voltage 4 ohm Dual SPST Switches

Datasheet Summary

Description

The ADG721, ADG722, and ADG723 are monolithic CMOS SPST switches.

These switches are designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.

Features

  • 1.8 V to 5.5 V single supply 4 Ω (max) on resistance Low on resistance flatness.
  • 3 dB bandwidth >200 MHz Tiny package options 8-lead MSOP 3 mm × 2 mm LFCSP (A grade) Fast switching times tON, 20 ns tOFF, 10 ns Low power consumption (.

📥 Download Datasheet

Datasheet preview – ADG723

Datasheet Details

Part number ADG723
Manufacturer Analog Devices
File Size 253.46 KB
Description CMOS Low Voltage 4 ohm Dual SPST Switches
Datasheet download datasheet ADG723 Datasheet
Additional preview pages of the ADG723 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices
  • ADG721 - CMOS Low Voltage 4 ohm Dual SPST Switches
  • ADG722 - CMOS Low Voltage 4 ohm Dual SPST Switches
  • ADG725 - Analog Multiplexers
  • ADG726 - 16-/32- Channel/ 3.5 1.8 V to 5.5 V/ 2.5 V/ Analog Multiplexers
  • ADG728 - CMOS/ Low-Voltage/ 2-Wire Serially-Controlled/ Matrix Switches
  • ADG729 - CMOS/ Low-Voltage/ 2-Wire Serially-Controlled/ Matrix Switches
  • ADG701 - CMOS Low Voltage 2ohm SPST Switches
  • ADG701L - SPST Switches

Full PDF Text Transcription

Click to expand full text

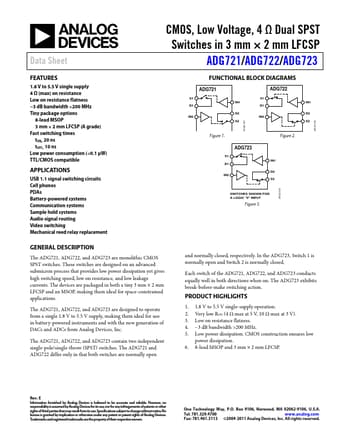

Data Sheet CMOS, Low Voltage, 4 Ω Dual SPST Switches in 3 mm × 2 mm LFCSP ADG721/ADG722/ADG723 00045-001 00045-002 FEATURES 1.8 V to 5.5 V single supply 4 Ω (max) on resistance Low on resistance flatness −3 dB bandwidth >200 MHz Tiny package options 8-lead MSOP 3 mm × 2 mm LFCSP (A grade) Fast switching times tON, 20 ns tOFF, 10 ns Low power consumption (<0.1 μW) TTL/CMOS compatible APPLICATIONS USB 1.1 signal switching circuits Cell phones PDAs Battery-powered systems Communication systems Sample hold systems Audio signal routing Video switching Mechanical reed relay replacement FUNCTIONAL BLOCK DIAGRAMS ADG721 ADG722 S1 S1 IN1 D1 D1 D2 IN2 IN2 S2 IN1 D2 S2 Figure 1. ADG723 S1 D1 IN2 Figure 2. IN1 D2 S2 00045-003 SWITCHES SHOWN FOR A LOGIC "0" INPUT Figure 3.
