ADG729 Datasheet - Analog Devices

ADG729 CMOS/ Low-Voltage/ 2-Wire Serially-Controlled/ Matrix Switches

PRODUCT HIGHLIGHTS The ADG728 and ADG729 are CMOS analog matrix switches with a serially controlled 2-wire interface. The ADG728 is an 8-channel matrix switch, while the ADG729 is a dual 4-channel matrix switch. On resistance is closely matched between switches and very flat over the full signal r.

ADG729 Features

* 2-Wire Serial Interface 2.7 V to 5.5 V Single Supply 2.5 ⍀ On Resistance 0.75 ⍀ On-Resistance Flatness 100 pA Leakage Currents Single 8-to-1 Matrix Switch ADG728 Dual 4-to-1 Matrix Switch ADG729 Power-On Reset Small 16-Lead TSSOP Package APPLICATIONS Data Acquisition Systems Communication Systems Re

ADG729_AnalogDevices.pdf

Preview of ADG729 PDF

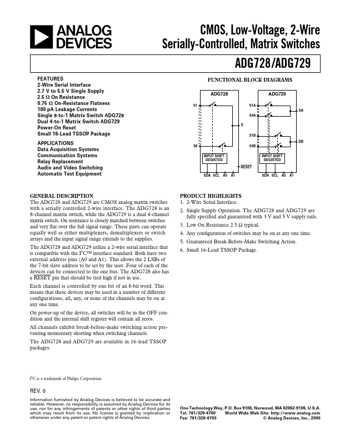

ADG729 Datasheet Preview Page 2 ADG729 Datasheet Preview Page 3

Datasheet Details

Part number:

ADG729

Manufacturer:

Analog Devices ↗

File Size:

150.11 KB

Description:

Cmos/ low-voltage/ 2-wire serially-controlled/ matrix switches.
