ADM706

Low Cost Microprocessor

Analog Devices

ADM706 Features

* Guaranteed RESET valid with VCC = 1 V 190 μA quiescent current Precision supply voltage monitor 4.65 V (ADM705/ADM707) 4.40 V (ADM706/ADM708) 200 ms reset pulse width Debounced TTL/CMOS manual reset input (MR) Independent watchdog timer (ADM705/ADM706) 1.60 sec timeout (ADM705/ADM706) Active high re

ADM706 General Description

The ADM705/ADM706/ADM707/ADM708 microprocessor supervisory circuits are suitable for monitoring 5 V power supplies/batteries and microprocessor activity. The ADM705/ADM706 provide power-supply monitoring circuitry that generate a reset output during power-up, powerdown, and brownout conditions. The .

ADM706 Datasheet (370.97 KB)

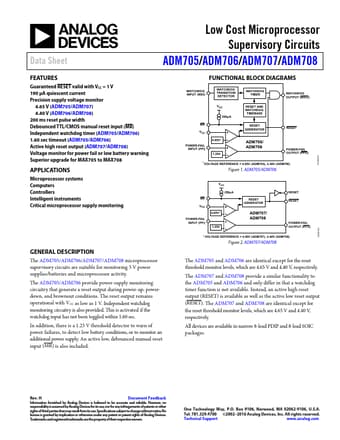

ADM706 Datasheet Preview — Preview of ADM706 PDF

Datasheet Details

Part number:

ADM706

Manufacturer:

Analog Devices ↗

File Size:

370.97 KB

Description:

Low cost microprocessor.
