ADM75N06

N-Channel MOSFET

ADM75N06 Features

* Low Gate Charge for Fast Switching Application

* Low RDS(ON) to Minimize Conductive Loss

* 100% EAS Guaranteed

* Optimized V(BR)DSS Ruggedness

* Lead-Free,RoHS Compliant 1  2  3  Description: The ADM75N06 uses advanced trench technology and design to provide excellent RDS(ON

ADM75N06 General Description

The ADM75N06 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. Absolute Maximum Ratings ( TA = 25°C unless otherwise specifed ) Symbol Parameter Common Ratings VDSS Drain-Source Voltage VGSS Gate-S.

ADM75N06 Datasheet (0.99 MB)

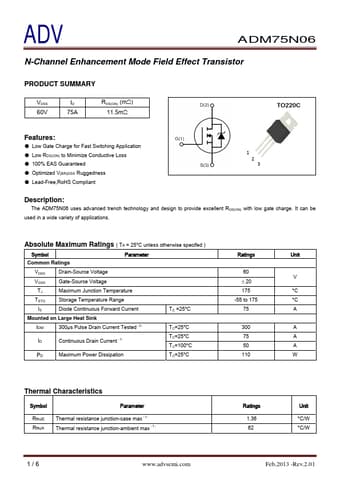

Preview of ADM75N06 PDF

Datasheet Details

Part number:

ADM75N06

Manufacturer:

ADV

File Size:

0.99 MB

Description:

N-channel mosfet.
                        ADV     ADM75N06  N-Channel Enhancement Mode Field Effect Transistor PRODUCT SUMMARY VDSS 60V ID 75A RDS(ON) (mΩ) 11.5mΩ.
