ADM706R - Voltage Monitoring Microprocessor

Product Overview

Analog Devices

Datasheet Details

Part number	ADM706R
Manufacturer	Analog Devices
File Size	326.86 KB
Description	Voltage Monitoring Microprocessor
Datasheet	ADM706R Datasheet

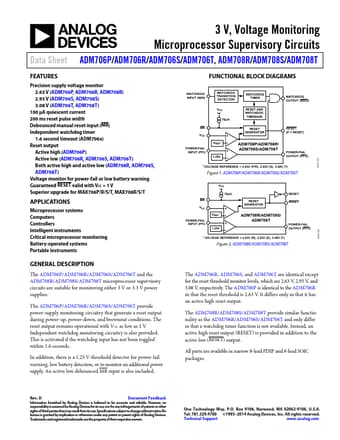

Additional preview pages of the ADM706R datasheet.

Product details

Description

The ADM706P/ADM706R/ADM706S/ADM706T and the ADM708R/ADM708S/ADM708T microprocessor supervisory circuits are suitable for monitoring either 3 V or 3.3 V power supplies.

Features

Precision supply voltage monitor 2.63 V (ADM706P, ADM706R, ADM708R) 2.93 V (ADM706S, ADM708S) 3.08 V (ADM706T, ADM708T) 100 μA quiescent current 200 ms reset pulse width Debounced manual reset input (MR) Independent watchdog timer 1.6 second timeout (ADM706x) Reset output Active high (ADM706P) Active low (ADM706R, ADM706S, ADM706T) Both active high and active low (ADM708R, ADM708S, ADM708T) Voltage monitor for power-fail or low battery warning Guaranteed RESET valid with VCC = 1 V Superior upgra.
