ADP667

+5 V Fixed/ Adjustable Low-Dropout Linear Voltage Regulator

ADP667 Features

* Low-Dropout: 150 mV @ 200 mA Low Power CMOS: 20 µA Quiescent Current Shutdown Mode: 0.2 µA Quiescent Current 250 mA Output Current Pin Compatible with MAX667 Stable with 10 µF Load Capacitor Low Battery Detector Fixed +5 V or Adjustable Output +3.5 V to +16.5 V Input Range Dropout Detector Output AP

ADP667 General Description

The ADP667 is a low-dropout precision voltage regulator that can supply up to 250 mA output current. It can be used to give a fixed +5 V output with no additional external components or can be adjusted from +1.3 V to +16 V using two external resistors. Fixed or adjustable operation is automatically .

ADP667 Datasheet (154.67 KB)

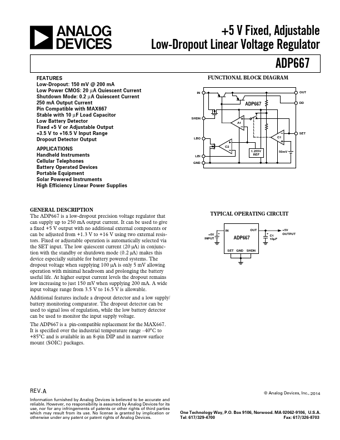

Preview of ADP667 PDF

Datasheet Details

Part number:

ADP667

Manufacturer:

Analog Devices ↗

File Size:

154.67 KB

Description:

+5 v fixed/ adjustable low-dropout linear voltage regulator.
