ADP-2-1+, ADP-2-1+-Mini Datasheet - Mini-Circuits

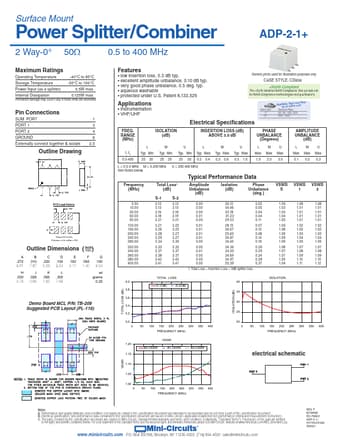

ADP-2-1+ Power Splitter/Combiner

Surface Mount Power Splitter/Combiner 2 Way-0° 50Ω 0.5 to 400 MHz ADP-2-1+ Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperature -55°C to 100°C Power Input (as a splitter) 0.5W max. Internal Dissipation 0.125W max. Permanent damage may occur if any of these limits are exceeded. Pin Connections SUM PORT 1 PORT 1 3 PORT 2 4 GROUND 6 Externally connect together & isolate 2,5 Outline Drawing PCB Land Pattern Suggested Layout, Tolerance to be within ± .

ADP-2-1+ Features

* low insertion loss, 0.3 dB typ.

* excellent amplitude unbalance, 0.10 dB typ.

* very good phase unbalance, 0.5 deg. typ.

* aqueous washable

* protected under U.S. Patent 6,133,525 Generic photo used for illustration purposes only CASE STYLE: CD636 +RoHS Com

ADP-2-1+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: ADP-2-1+, ADP-2-1+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADP-2-1+, ADP-2-1+-Mini

Manufacturer:

Mini-Circuits

File Size:

249.97 KB

Description:

Power splitter/combiner.

Note:

This datasheet PDF includes multiple part numbers: ADP-2-1+, ADP-2-1+-Mini.
Please refer to the document for exact specifications by model.
