ADP-2-9+, ADP-2-9+-Mini, Power Splitter/Combiner

Surface Mount Power Splitter/Combiner 2 Way-0° 50Ω 200 to 900 MHz ADP-2-9+ Maximum Ratings Operating Temperature -40°C to 85°C Storage Temperat.

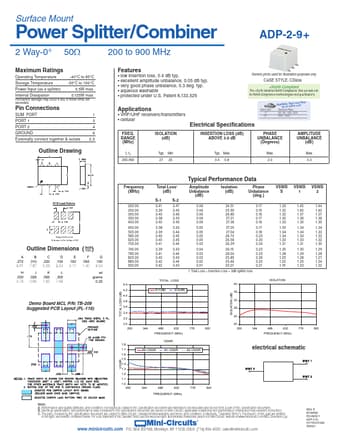

datasheet Preview Page 1 from Datasheet4u.com

ADP-2-9+-Mini-Circuits.pdf

ADP-2-9+ Datasheet Preview — This datasheet PDF includes multiple part numbers: ADP-2-9+, ADP-2-9+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADP-2-9+, ADP-2-9+-Mini

Manufacturer:

Mini-Circuits

File Size:

246.15 KB

Description:

Power Splitter/Combiner

Note:

This datasheet PDF includes multiple part numbers: ADP-2-9+, ADP-2-9+-Mini.
Please refer to the document for exact specifications by model.

Features

* low insertion loss, 0.4 dB typ.
* excellent amplitude unbalance, 0.05 dB typ.
* very good phase unbalance, 0.3 deg. typ.
* aqueous washable
* protected under U. S. Patent 6,133,525 Generic photo used for illustration purposes only CASE STYLE: CD636 +RoHS Com

Applications

* VHF/UHF receivers/transmitters
* cellular Electrical Specifications Reel Size 7” 13” Available at no TeaxptreaacnodstReel Devices/Reel 20, 50, 100, 200 500, 1000 FREQ. RANGE (MHz) ISOLATION (dB) INSERTION LOSS (dB) ABOVE 3.0 dB PHASE UNBALANCE (Degrees) AMPLITUDE UNBALAN
