ADSP21065L

Low-cost Sharc / 60 Mhz / 180 Mflops / 3.3v / Floating Point

ADSP21065L Features

* 66 MIPS, 198 MFLOPS Peak, 132 MFLOPS Sustained Performance User-Configurable 544 Kbits On-Chip SRAM Memory Two External Port, DMA Channels and Eight Serial Port, DMA Channels DSP Microcomputer ADSP-21065L SDRAM Controller for Glueless Interface to Low Cost External Memory (@ 66 MHz) 64M Words Exter

ADSP21065L General Description

The ADSP-21065L is a powerful member of the SHARC family of 32-bit processors optimized for cost sensitive applications. The SHARC

*Super Harvard Architecture

*offers the highest levels of performance and memory integration of any 32-bit DSP in the industry

*they are also the o.

ADSP21065L Datasheet (376.80 KB)

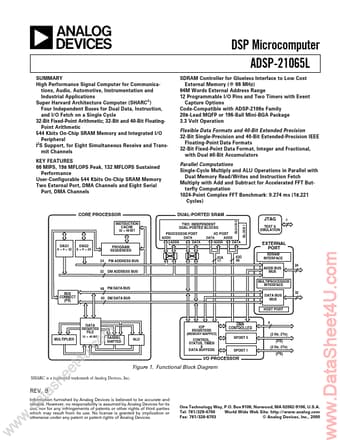

Preview of ADSP21065L PDF

Datasheet Details

Part number:

ADSP21065L

Manufacturer:

Analog Devices ↗

File Size:

376.80 KB

Description:

Low-cost sharc / 60 mhz / 180 mflops / 3.3v / floating point.
a SUMMARY High Performance Signal Computer for Communications, Audio, Automotive, Instrumentation and Industrial Applications Super Harvard Architectu.
