ADSY1100

0.1 GHz to 20 GHz Apollo MxFE 3UVPX Tuner + Digitizer + Processor

ADSY1100 Features

* Four transmit (Tx) channels

* Up to 28GSPS DACs

* Four receive (Rx) channels

* Up to 20GSPS ADCs

* Swappable RF tuner personality cards

* 0.1-20GHz tuning

* Multiple tuner options

* Phase and Hop Coherency

* Memory Options

* 8 GB DDR4 Data Memory

* 4 GB

ADSY1100 General Description

Analog Devices’ ADSY1100-series is a family of wideband multichannel RF digitizers in a 3UVPX SOSA™-aligned format. The system is built around ADI’s next generation “Apollo” MXFE™ product (AD9084) featuring DAC sample rates up to 28 GSPS and ADC sample rates up to 20 GSPS in a 4Tx / 4Rx configuratio.

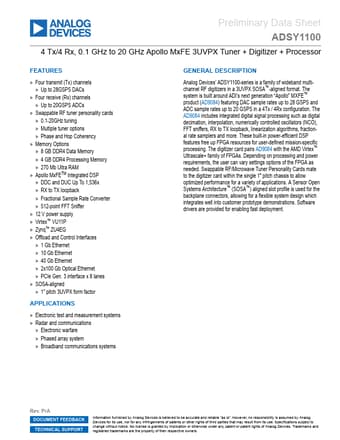

ADSY1100 Datasheet (371.61 KB)

Preview of ADSY1100 PDF

Datasheet Details

Part number:

ADSY1100

Manufacturer:

Analog Devices ↗

File Size:

371.61 KB

Description:

0.1 ghz to 20 ghz apollo mxfe 3uvpx tuner + digitizer + processor.
