ADV7341 Datasheet, Encoder, Analog Devices

ADV7341 Features

• Encoder 74.25 MHz 20-/30-bit high definition input support Compliant with SMPTE 274 M (1080i), 296 M (720p), and 240 M (1035i) 6 Noise Shaped Video® (NSV) 12-bit video DACs 16× (216 MHz) DAC ov

PDF File Details

Part number:

ADV7341

Manufacturer:

Analog Devices ↗

File Size:

1.40MB

Download:

📄 Datasheet

Description:

(adv7340 / adv7341) multiformat video encoder.

TAGS

ADV7341

Analog Devices

📁 Related Datasheet

ADV7340 - (ADV7340 / ADV7341) Multiformat Video Encoder (Analog Devices)

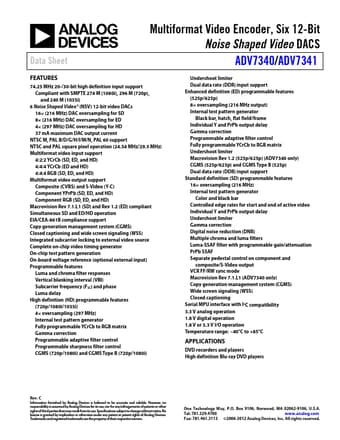

Data Sheet Multiformat Video Encoder, Six 12-Bit Noise Shaped Video DACS ADV7340/ADV7341 FEATURES 74.25 MHz 20-/30-bit high definition input support.
