ADV7342 Datasheet - Analog Devices

ADV7342 (ADV7342 / ADV7343) Multiformat Video Encoder

ADV7342 Features

* 74.25 MHz 16-/24-bit high definition input support Compliant with SMPTE 274M (1080i), 296M (720p), and 240M (1035i) Six 11-bit, 297 MHz video DACs 16× (216 MHz) DAC oversampling for SD 8× (216 MHz) DAC oversampling for ED 4× (297 MHz) DAC oversampling for HD 37 mA maximum DAC output current NTSC M,

ADV7342_AnalogDevices.pdf

Preview of ADV7342 PDF

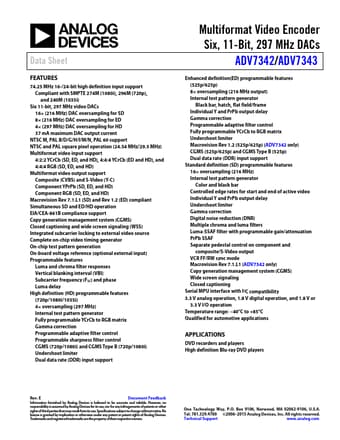

ADV7342 Datasheet Preview Page 2 ADV7342 Datasheet Preview Page 3

Datasheet Details

Part number:

ADV7342

Manufacturer:

Analog Devices ↗

File Size:

1.54 MB

Description:

(adv7342 / adv7343) multiformat video encoder.
