DAC8412

12-Bit DAC Voltage Output

DAC8412 Features

* +5 V to ±15 V operation Unipolar or bipolar operation True voltage output Double-buffered inputs Reset to minimum (DAC8413) or center scale (DAC8412) Fast bus access time Readback APPLICATIONS Automatic test equipment Digitally controlled calibration Servo controls Process control equipment GENERAL

DAC8412 General Description

The DAC8412/DAC8413 are quad, 12-bit voltage output DACs with readback capability. Built using a complementary BiCMOS process, these monolithic DACs offer the user very high package density. Output voltage swing is set by the two reference inputs VREFH and VREFL. By setting the VREFL input to 0 V an.

DAC8412 Datasheet (475.74 KB)

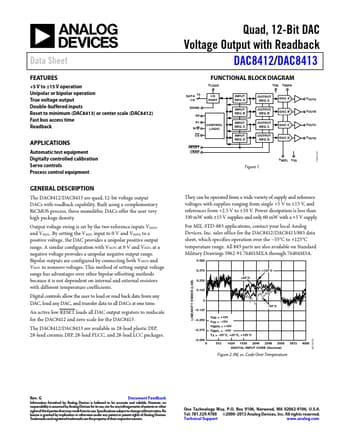

Preview of DAC8412 PDF

Datasheet Details

Part number:

DAC8412

Manufacturer:

Analog Devices ↗

File Size:

475.74 KB

Description:

12-bit dac voltage output.
