DAC8413 Datasheet - Analog Devices

DAC8413 - 12-Bit DAC Voltage Output

The DAC8412/DAC8413 are quad, 12-bit voltage output DACs with readback capability.

Built using a complementary BiCMOS process, these monolithic DACs offer the user very high package density.

Output voltage swing is set by the two reference inputs VREFH and VREFL.

By setting the VREFL input to 0 V an

DAC8413 Features

* +5 V to ±15 V operation Unipolar or bipolar operation True voltage output Double-buffered inputs Reset to minimum (DAC8413) or center scale (DAC8412) Fast bus access time Readback APPLICATIONS Automatic test equipment Digitally controlled calibration Servo controls Process control equipment GENERAL

DAC8413_AnalogDevices.pdf

Preview of DAC8413 PDF

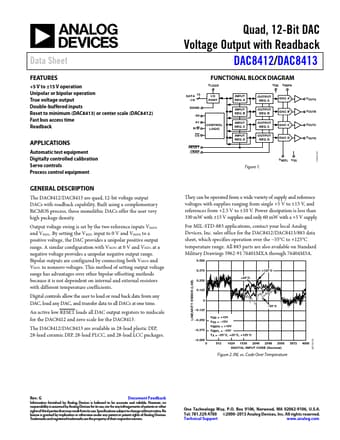

DAC8413 Datasheet Preview Page 2 DAC8413 Datasheet Preview Page 3
