DAC8426

Quad 8-Bit Voltage Out CMOS DAC Complete

DAC8426 Features

* No Adjustments Required, Total Error ؎1 LSB Max Over Temperature Four Voltage-Output DACs on a Single Chip Internal 10 V Bandgap Reference Operates from Single ؉15 V Supply Fast 50 ns Data Load Time, All Temperatures Pin-for-Pin Replacement for PM-7226 and AD7226, Eliminates External Reference APPLI

DAC8426 General Description

The DAC8426 is a complete quad voltage output D/A converter with internal reference. This product fits directly into any existing 7226 socket where the user currently has a 10 V external reference. The external reference is no longer necessary. The internal reference of the DAC8426 is laser-trimmed.

DAC8426 Datasheet (289.50 KB)

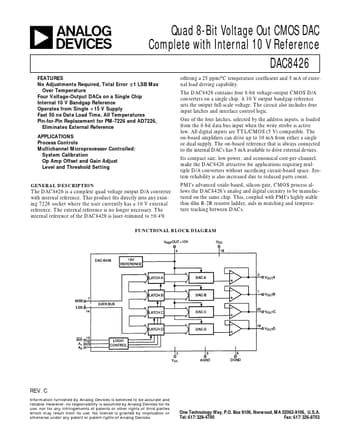

Preview of DAC8426 PDF

Datasheet Details

Part number:

DAC8426

Manufacturer:

Analog Devices ↗

File Size:

289.50 KB

Description:

Quad 8-bit voltage out cmos dac complete.
a Quad 8-Bit Voltage Out CMOS DAC Complete with Internal 10 V Reference DAC8426 offering a 25 ppm/°C temperature coefficient and 5 mA of external loa.
