HMC412BMS8GE Datasheet, Mixer, Analog Devices

HMC412BMS8GE Features

• Mixer Conversion Loss: 8 dB Noise Figure: 8 dB LO to RF Isolation: 44 dB LO to IF Isolation: 38 RF to IF Isolation: 29 dB Input Third-Order Intercept: 19 dB Input Power for 1 dB Compression:

PDF File Details

Part number:

HMC412BMS8GE

Manufacturer:

Analog Devices ↗

File Size:

619.28kb

Download:

📄 Datasheet

Description:

Double-balanced mixer. The HMC412BMS8GE is a passive doublebalanced mixer that operates from 8 to 16 GHz. The HMC412BMS8GE operates with LO drive levels bet

HMC412BMS8GE Application

• Applications The HMC412BMS8GE is ideal for:
• Long Haul Radio Platforms
• Microwave Radio

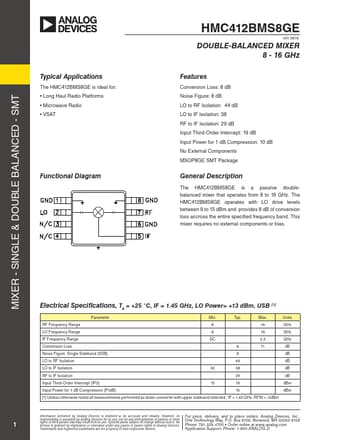

• VSAT Functional Diagram HMC412B
