HMC435MS8G - SPDT NON-REFLECTIVE SWITCH

Datasheet Summary

Description

The HMC435MS8G is a non-reflective DC to 4 GHz GaAs MESFET SPDT switch in a low cost 8 lead MSOP8G surface mount package with an exposed ground paddle.

The switch is ideal for cellular/PCS/3G basestation applications yielding 50 to 60 dB isolation, low 0.8 dB insertion loss and +50 dBm input IP3.

Features

  • High Isolation: 60 dB @ 1 GHz 50 dB @ 2 GHz Positive Control: 0/+5V 51 dBm Input IP3 Non-Reflective Design MS8G SMT Package, 14.8 mm2 Typical.

📥 Download Datasheet

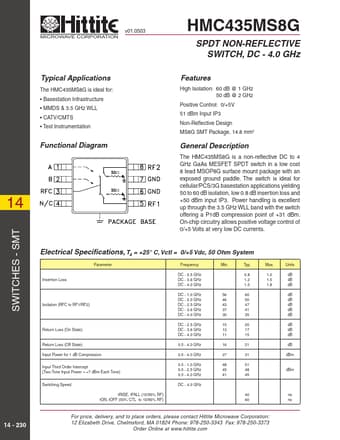

Datasheet preview – HMC435MS8G
