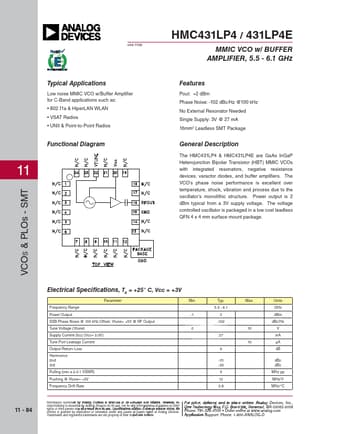

* Pout: +2 dBm Phase Noise: -102 dBc/Hz @100 kHz No External Resonator Needed Single Supply: 3V @ 27 mA 16mm2 Leadless SMT Package General Description The HMC431LP4 & HMC431LP4E are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs with integrated resonators, negative resistance devices, va
HMC431LP4E Datasheet (656.18 KB)
HMC431LP4E
656.18 KB
Mmic vco.
v04.1106
Typical Applications
Low noise MMIC VCO w/Buffer Amplifier for C-Band applications such as:
* 802.11a & HiperLAN WLAN
* VSAT .
