HMC411MS8G - GaAs MMIC

Datasheet Summary

Description

The HMC411MS8G is a passive single balanced mixer that operates between 10 GHz and 15 GHz.

The HMC411MS8G operates with LO drive levels between +9 dBm and +15 dBm, and provides 9 dB conversion loss across the entire specified frequency band.

This mixer requires no external components or bias.

Features

  • Conversion Loss: 9.0 dB LO/RF Isolation: 27 dB LO/IF Isolation: 30 dB Input IP3: +16 dBm No External Components MSOP8G SMT Package Typical.

📥 Download Datasheet

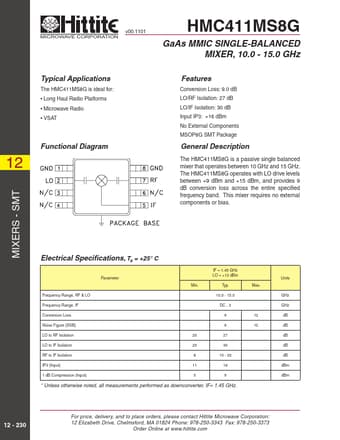

Datasheet preview – HMC411MS8G

Datasheet Details

Part number HMC411MS8G
Manufacturer Hittite Microwave Corporation
File Size 210.30 KB
Description GaAs MMIC
Datasheet download datasheet HMC411MS8G Datasheet
Additional preview pages of the HMC411MS8G datasheet.

📁 Similar Datasheet

  • HMC410AMS8G - GaAs MMIC DOUBLE-BALANCED HIGH IP3 MIXER (Analog Devices)
  • HMC410AMS8GE - GaAs MMIC DOUBLE-BALANCED HIGH IP3 MIXER (Analog Devices)
  • HMC412BMS8GE - DOUBLE-BALANCED MIXER (Analog Devices)
  • HMC413QS16G - GaAs InGaP HBT MMIC POWER AMPLIFIER (Analog Devices)
  • HMC413QS16GE - GaAs InGaP HBT MMIC POWER AMPLIFIER (Analog Devices)
  • HMC414MS8G - GaAs InGaP HBT MMIC POWER AMPLIFIER (Analog Devices)
  • HMC414MS8GE - GaAs InGaP HBT MMIC POWER AMPLIFIER (Analog Devices)
  • HMC415LP3 - GaAs InGaP HBT MMIC POWER AMPLIFIER (Analog Devices)
  • HMC415LP3E - GaAs InGaP HBT MMIC POWER AMPLIFIER (Analog Devices)
  • HMC416LP4 - MMIC VCO (Analog Devices)
Other Datasheets by Hittite Microwave Corporation

Full PDF Text Transcription

Click to expand full text
MICROWAVE CORPORATION v00.1101 HMC411MS8G GaAs MMIC SINGLE-BALANCED MIXER, 10.0 - 15.0 GHz Features Conversion Loss: 9.0 dB LO/RF Isolation: 27 dB LO/IF Isolation: 30 dB Input IP3: +16 dBm No External Components MSOP8G SMT Package Typical Applications The HMC411MS8G is ideal for: • Long Haul Radio Platforms • Microwave Radio • VSAT Functional Diagram General Description The HMC411MS8G is a passive single balanced mixer that operates between 10 GHz and 15 GHz. The HMC411MS8G operates with LO drive levels between +9 dBm and +15 dBm, and provides 9 dB conversion loss across the entire specified frequency band. This mixer requires no external components or bias. 12 MIXERS - SMT Electrical Specifications, TA = +25° C Parameter Min.
