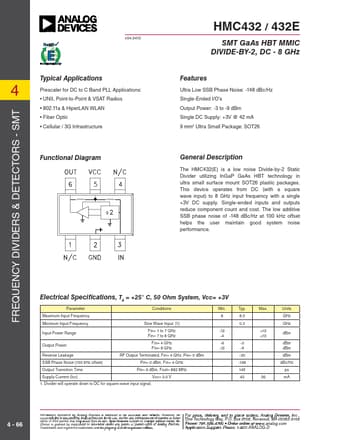

HMC432E Datasheet, Mmic, Analog Devices

HMC432E Features

• Mmic Ultra Low SSB Phase Noise: -148 dBc/Hz Single-Ended I/O’s Output Power: -3 to -9 dBm Single DC Supply: +3V @ 42 mA 9 mm2 Ultra Small Package: SOT26 General Description The HMC432(E) is

PDF File Details

Part number:

HMC432E

Manufacturer:

Analog Devices ↗

File Size:

348.43kb

Download:

📄 Datasheet

Description:

Smt gaas hbt mmic. The HMC432(E) is a low noise Divide-by-2 Static Divider utilizing InGaP GaAs HBT technology in ultra small surface mount SOT26 plasti

HMC432E Application

• Applications 4 Prescaler for DC to C Band PLL Applications:
• UNII, Point-to-Point & VSAT Radios
• 802.11a & HiperLAN WLAN
