HMC480ST89 Datasheet, Amplifier, Analog Devices

HMC480ST89 Features

  • Amplifier P1dB Output Power: +19 dBm to 2.5 GHz Gain: 19 dB @ 1 GHz 16 dB @ 2 GHz +34 dBm Output IP3 Single Supply: +6V to +8V Industry Standard SOT89 Package Included in the HMC-DK001 Designer’s

PDF File Details

Part number:

HMC480ST89

Manufacturer:

Analog Devices ↗

File Size:

328.65kb

Download:

📄 Datasheet

Description:

Ingap hbt gain block mmic amplifier. The HMC480ST89 & HMC480ST89E are InGaP HBT Gain Block MMIC SMT amplifiers covering DC to 5 GHz and packaged in an industry standard S

Datasheet Preview: HMC480ST89 📥 Download PDF (328.65kb)

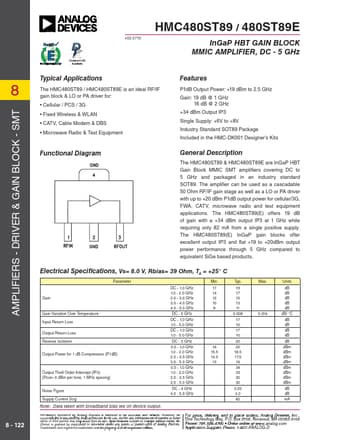

Page 2 of HMC480ST89 Page 3 of HMC480ST89

HMC480ST89 Application

  • Applications The HMC480ST89 / HMC480ST89E is an ideal RF/IF gain block & LO or PA driver for:
  • Cellular / PCS / 3G
  • Fixed Wireless
