HMC481ST89E Datasheet, Amplifier, Analog Devices

HMC481ST89E Features

• Amplifier P1dB Output Power: +19 dBm Gain: 20 dB Output IP3: +33 dBm Cascadable 50 Ohm I/Os Single Supply: +6V to +12V Industry Standard SOT89 Package Included in the HMC-DK001 Designer’s Kits F

PDF File Details

Part number:

HMC481ST89E

Manufacturer:

Analog Devices ↗

File Size:

324.90kb

Download:

📄 Datasheet

Description:

Sige hbt gain block mmic amplifier. The HMC481ST89 & HMC481ST89E are SiGe Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT amplifiers covering DC to 5 GHz. P

HMC481ST89E Application

• Applications The HMC481ST89 / HMC481ST89E is an ideal RF/IF gain block & LO or PA driver for:
• Cellular / PCS / 3G
• Fixed Wireless

TAGS

HMC481ST89E

Analog Devices

📁 Related Datasheet

HMC481ST89 - SiGe HBT GAIN BLOCK MMIC AMPLIFIER (Analog Devices)

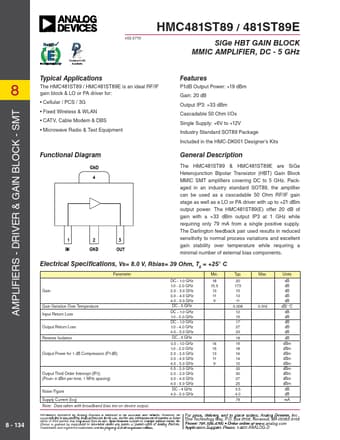

HMC481ST89 / 481ST89E v02.0710 SiGe HBT GAIN BLOCK MMIC AMPLIFIER, DC - 5 GHz AMPLIFIERS - DRIVER & GAIN BLOCK - SMT 8 8 - 134 Typical Applicatio.
