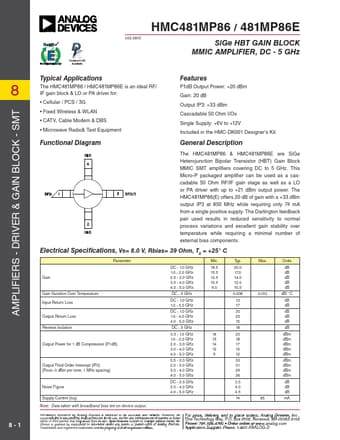

HMC481MP86E Datasheet, Amplifier, Analog Devices

HMC481MP86E Features

• Amplifier P1dB Output Power: +20 dBm Gain: 20 dB Output IP3: +33 dBm Cascadable 50 Ohm I/Os Single Supply: +6V to +12V Included in the HMC-DK001 Designer’s Kit Functional Diagram General Descri

PDF File Details

Part number:

HMC481MP86E

Manufacturer:

Analog Devices ↗

File Size:

317.67kb

Download:

📄 Datasheet

Description:

Sige hbt gain block mmic amplifier. The HMC481MP86 & HMC481MP86E are SiGe Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT amplifiers covering DC to 5 GHz. T

HMC481MP86E Application

• Applications The HMC481MP86 / HMC481MP86E is an ideal RF/ IF gain block & LO or PA driver for:
• Cellular / PCS / 3G
• Fixed Wireles
