LTC3644-2 Datasheet, Regulator, Analog Devices

LTC3644-2 Features

  • Regulator n Quad Step-down Outputs: 1.25A per Channel n Wide VIN Range: 2.7V to 17V n Wide VOUT Range: 0.6V to VIN n 1.25A/2.5A/3.75A/5A IOUT Configurable with One Inductor n Integrated 300mΩ P-C

PDF File Details

Part number:

LTC3644-2

Manufacturer:

Analog Devices ↗

File Size:

1.50MB

Download:

📄 Datasheet

Description:

1.25a parallelable synchronous stepdown regulator. The LTC®3644/LTC3644-2 is a quad 1.25A output, high efficiency synchronous monolithic step-down regulator capable of operating from

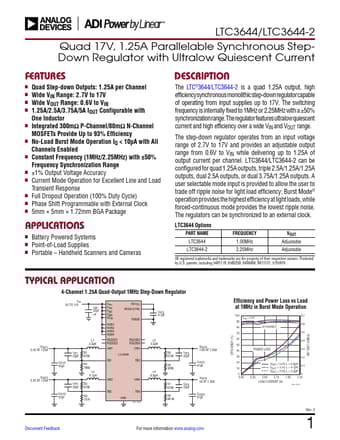

Datasheet Preview: LTC3644-2 📥 Download PDF (1.50MB)
Page 2 of LTC3644-2 Page 3 of LTC3644-2

LTC3644-2 Application

  • Applications n Battery Powered Systems n Point-of-Load Supplies n Portable
      – Handheld Scanners and Cameras DESCRIPTION The LTC®364
