LTC3646 Datasheet, Converter, Linear

LTC3646 Features

  • Converter nn Wide Input Voltage Range: 4.0V to 40V nn 1A Guaranteed Output Current nn High Efficiency: Up to 95% nn Wide Output Voltage Range nn LTC3646: 2.0V to 30V nn LTC3646-1: 0.6V to 15V nn

PDF File Details

Part number:

LTC3646

Manufacturer:

Linear

File Size:

556.12kb

Download:

📄 Datasheet

Description:

1a synchronous step-down converter. The LTC®3646 is a high efficiency, step-down DC/DC converter with internal high side and synchronous power FETs. It draws only 140µA

Datasheet Preview: LTC3646 📥 Download PDF (556.12kb)

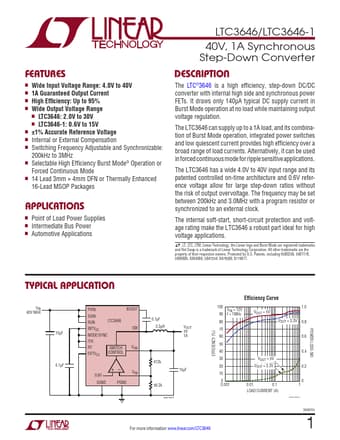

Page 2 of LTC3646 Page 3 of LTC3646

LTC3646 Application

  • Applications nn Point of Load Power Supplies nn Intermediate Bus Power nn Automotive Applications LTC3646/LTC3646-1 40V, 1A Synchronous Step-Down C
