LTC3646-1, LTC3646 Datasheet - Linear

LTC3646-1 1A Synchronous Step-Down Converter

The LTC®3646 is a high efficiency, step-down DC/DC converter with internal high side and synchronous power FETs. It draws only 140µA typical DC supply current in Burst Mode operation at no load while maintaining output voltage regulation. The LTC3646 can supply up to a 1A load, and its combination o.

LTC3646-1 Features

* nn Wide Input Voltage Range: 4.0V to 40V nn 1A Guaranteed Output Current nn High Efficiency: Up to 95% nn Wide Output Voltage Range nn LTC3646: 2.0V to 30V nn LTC3646-1: 0.6V to 15V nn ±1% Accurate Reference Voltage nn Internal or External Compensation nn Switching Frequency Adjustable and Synchroni

LTC3646-Linear.pdf

This datasheet PDF includes multiple part numbers: LTC3646-1, LTC3646. Please refer to the document for exact specifications by model.

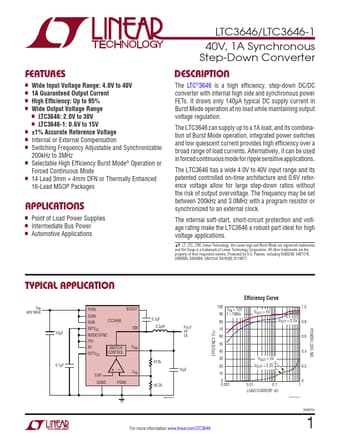

LTC3646-1 Datasheet Preview Page 2 LTC3646-1 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC3646-1, LTC3646

Manufacturer:

Linear

File Size:

556.12 KB

Description:

1a synchronous step-down converter.

Note:

This datasheet PDF includes multiple part numbers: LTC3646-1, LTC3646.
Please refer to the document for exact specifications by model.
